A How-to Guide on Parsing List Data in XML and JSON with CloverDX 4.1

Parsing of XML and JSON data is an important task in data integration because the majority of today's APIs and Web Services are built around these two formats. CloverDX has JSONExtract and XMLExtract components which do just that.

With the release of CloverDX version 4.1 we added the ability to to parse JSON array elements and repeating elements in XML (sequences) directly into lists in CloverDX records.

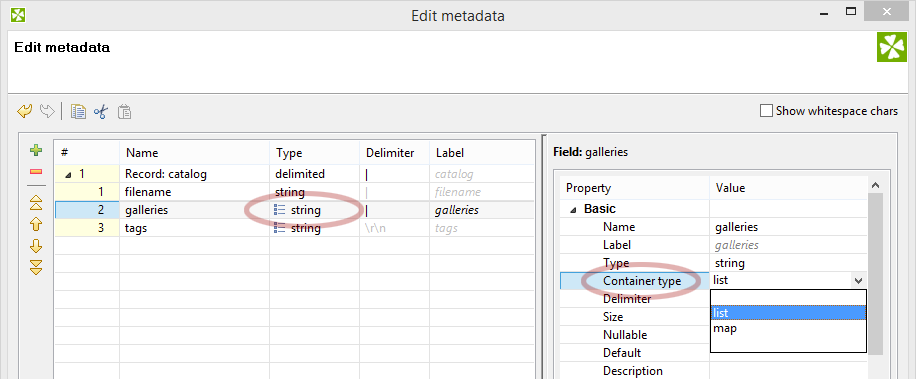

A metadata field usually holds only a single value of predefined data type (string, integer, etc.). However, you can switch the field to “list” or “map” mode which makes it hold an array of values (of the same data type). Some components can work with these directly, or you can easily manipulate lists in CTL.

You can check out our documentation for finer details.

Parsing List Data in XML and JSON with CloverDX 4.1

Look at “galleries” and “tags” in these simple examples:

JSON

{

"filename": "dsc_74532.jpg",

"galleries": ["family", "2015"],

"tags": ["summer", "children", "Peter", "Mary"]

}

XML

<?xml version="1.0" encoding="UTF-8" ?>

<catalog>

  <file>

   <filename>dsc_74532.jpg</filename>

   <galleries>family</galleries>

   <galleries>2015</galleries>

   <tags>summer</tags>

   <tags>children</tags>

   <tags>Peter</tags>

   <tags>Mary</tags>

  </file>

</catalog>

You can see these have multiple values that need to be parsed and processed. Previously, you had to work around such multi-value elements by having multiple record streams (and therefore multiple edges) instead of using multi-value fields.

See how it looks with lists instead of mutiple record streams:

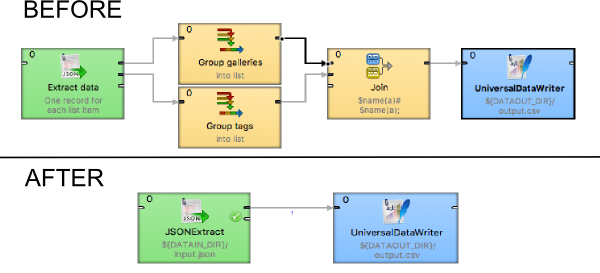

Parsing List Data in XML and JSON with CloverDX 4.1: Graph for parsing list data before and after update.

As you can see, we've saved a component for each multi-value element, plus a 'join' component to put everything back together. Undoubtedly, it can save a lot of time in development when incoming data structures change. And of course, this improvement also positively affects performance.

Here's how it works...

Let’s see how the new list mapping feature works for the sample XML data above (galleries and tags).

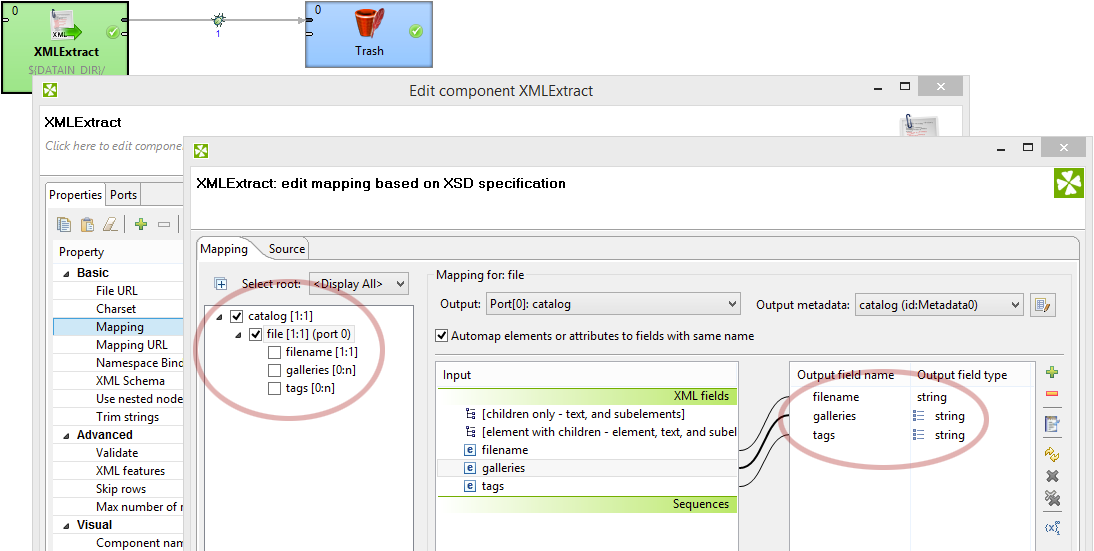

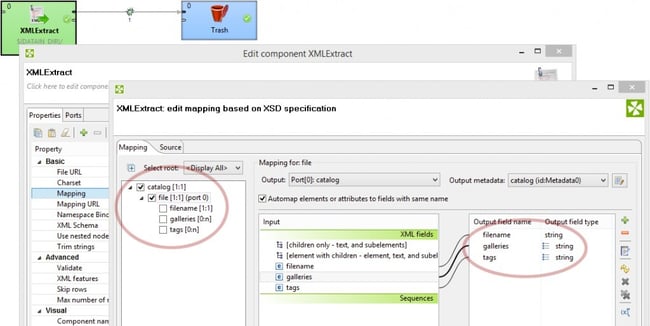

Parsing List Data in XML and JSON with CloverDX 4.1: Map the parsing list in the CloverDX.
The mapping looks simple, just like if we were dealing with regular single value fields. For obvious reasons this only works if the repeating element does not contain additional sub elements (i.e. if is not a structured element on its own).
